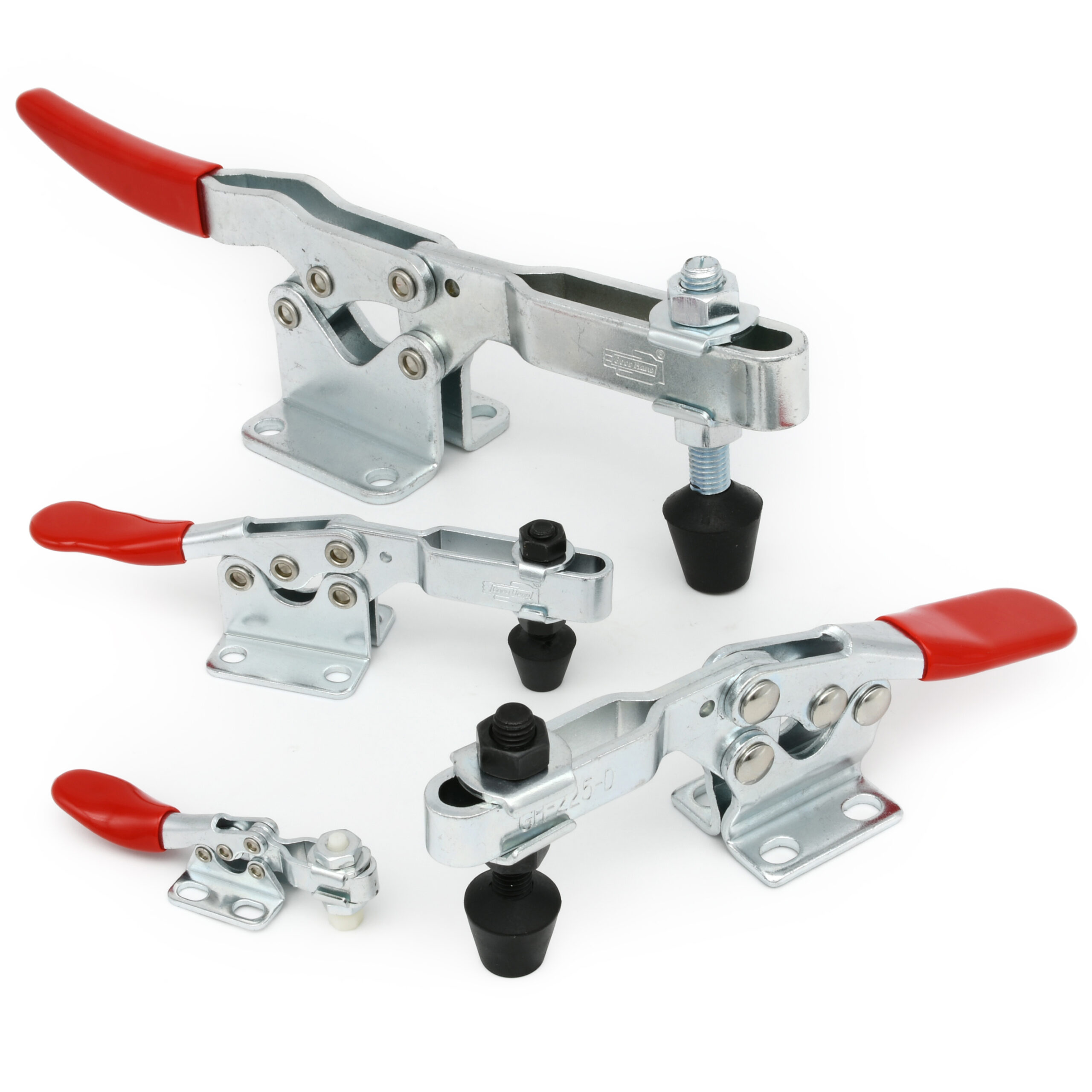

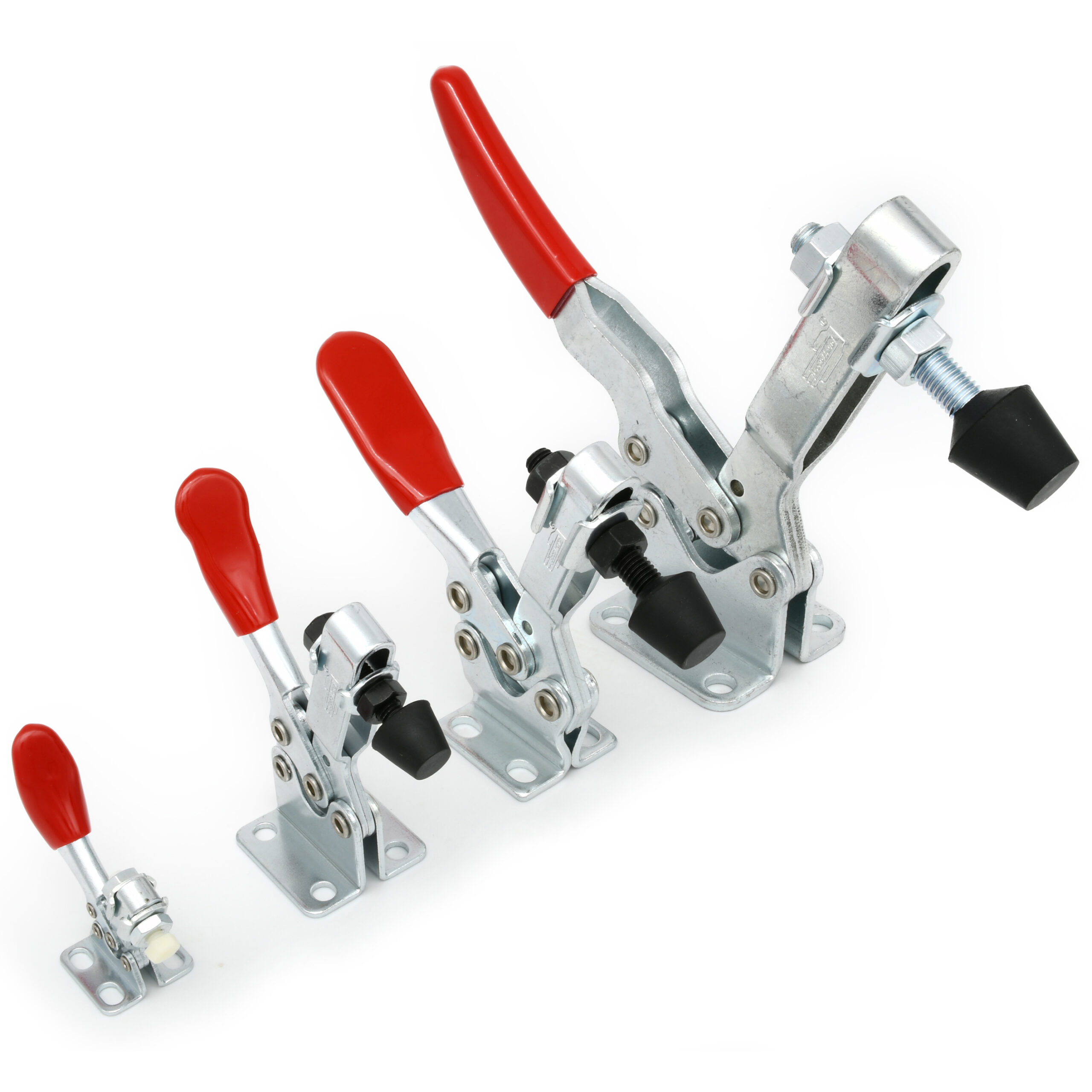

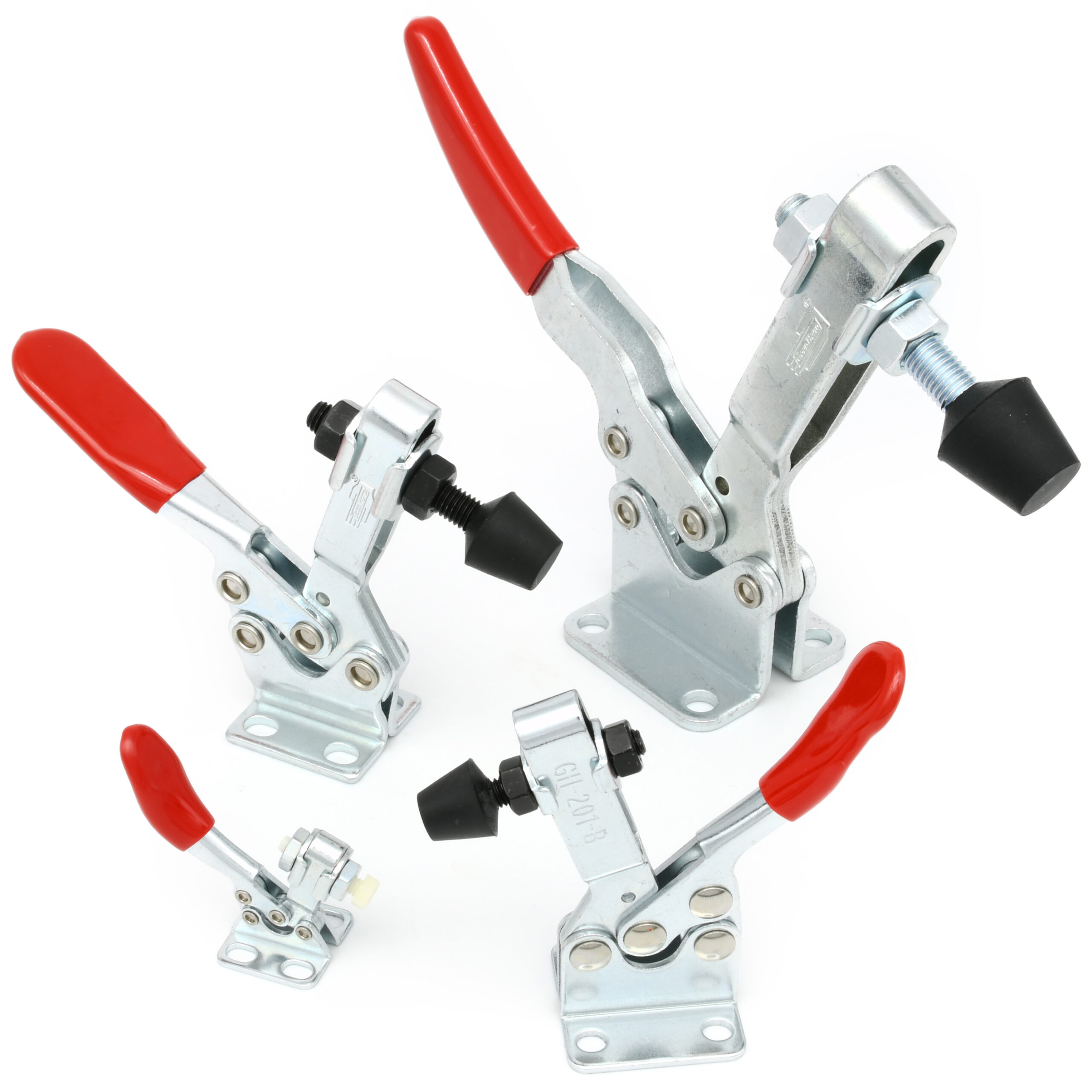

Planet Horizontal Toggle Clamps

Description

The Planet Horizontal toggle clamps have the advantage of having a low profile when the handle is in the closed position, and so are most suitable for applications having a height restriction. The arm and handle geometry use opposite axis directions. They have a high holding capacity to size ratio which makes them ideal for use in a workshop environment where space is limited. With these clamps, you can make easily make jigs for woodworking tasks, such as routing and milling.

Features include:

• Red vinyl hand grip with cushioned rib profile for improved user comfort.
• All body and linkage components are zinc plated to resist corrosion.
• Pivot points are fitted with hardened steel or stainless steel rivets to provide a long service life.
• Clamps with adjustable spindles are manufactured with a formed end to the arm, which captivates the spindle should it become loose during operation.
• The handle and arm linkages are designed to provide a smooth continuous action when the handle is opened and closed.

Material
Clamp: Zinc Plated Mild Steel
Spindle: Steel
Handle: uPVC

SKU: H25
Holding Force: 27Kg
Arm Opens: 90°
Handle Opens: 80°

SKU: H35
Holding Force: 90Kg
Arm Opens: 85°
Handle Opens: 60°

SKU: H45
Holding Force: 227Kg
Arm Opens: 90°
Handle Opens: 65°

SKU: H55
Holding Force: 340Kg
Arm Opens: 85°
Handle Opens: 50°
