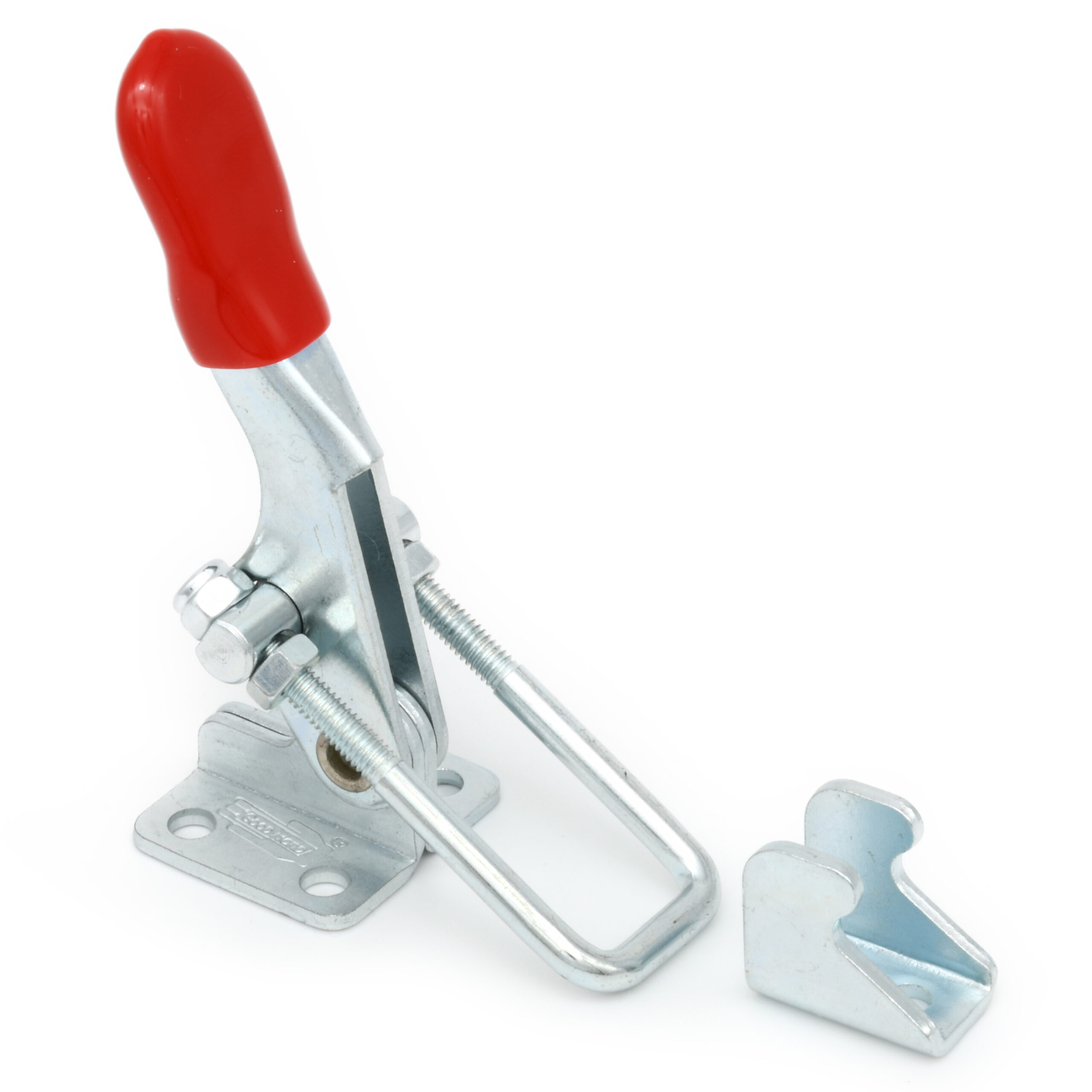

Planet Latch Type Toggle Clamps

From £15.45 Excl. VAT

  • Provides pulling force via sturdy latch and hook
  • High holding capacity to size ratio
  • Ideal for use in a workshop environment
SKU: N/A Categories: ,

Description

The Planet Latch Type Toggle Clamps provide a horizontal pulling force via the sturdy latch and hook mechanism.  They have a high holding capacity to size ratio which makes them ideal for use in a workshop environment where space is limited.

SKU: C150
– Holding Force: 163Kg
– U Bolt Diameter: 4mm
– Clamping Stroke: 30mm
– Adjustment Distance: 10.4mm

SKU: C250
– Holding Force: 318Kg
– U Bolt Diameter: 5mm
– Clamping Stroke: 45mm
– Adjustment Distance: 21.6mm

Additional information

Weight N/A
Capacity

163kg, 318kg
